Our line of visible hybrid photodiodes have unique capabilities.  Our Silicon TOCONs, derived from our successful UV TOCON line, provide amplified 0 – 5 V output over an extremely large sensitivity range.  Devices are sensitive from microlux to Megalux.  Important for system designers is the ability to select the sensitivity range that matches your requirements, and take advantage of the resulting 0-5 V output over your chosen range.  This results in greatly simplified front end electronics

Advantages of the Silicon TOCONs – Hybrid Photodetectors

  • Wide range of selectable sensitivities – picowatts/cm2 to Watts/cm2
  • Nine selectable models covering 12 orders of magnitude of sensitivity
  • 0-5 volts amplified output
  • voltage output interfaces easily with your next stage electronics
  • Compact TO packaging
  • Well shielded from external noise

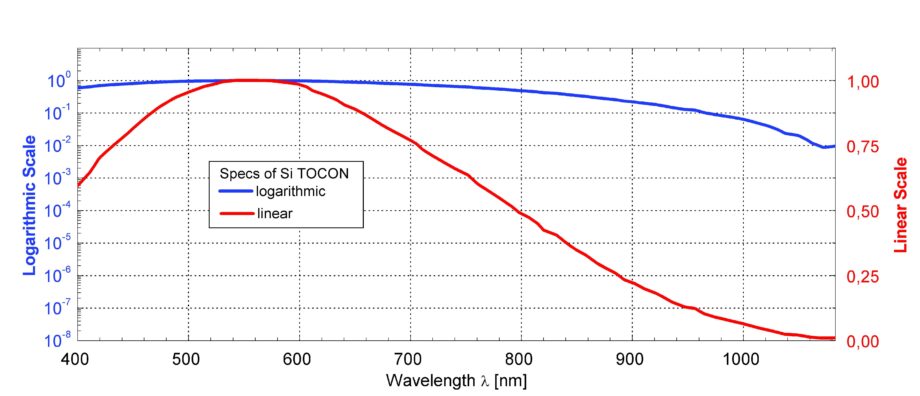

  • Wide spectral coverage:
    • UV – Visible – Near IR response
    • 290 to 1010 nm

Applications include:

  • Analytical instrumentation
    • Chemical analysis
    • Biomedical
  • Illumination Control
    • Laser detection
    • light source detection

Listed below are the Silicon TOCONs available for sale through the web store. See the selection guide for the full product line.

Silicon Hybrid TOCONs - Web Store

PartWavelength
range
IrradianceOutputWeb Store
TOCON Si1290 - 1010 nm
626 nm peak
1.8 pW/cm2 to 1.8 nW/cm20-5 VBuy
TOCON Si7290 - 1010 nm
626 nm peak
1.8 uW/cm2 to 1.8 mW/cm20-5 VBuy
TOCON Si10290 - 1010 nm
626 nm peak
1.8 mW/cm2 to 18 W/cm20-5 VBuy
TOCON Starter Kit
easy test set up0-5 VBuy

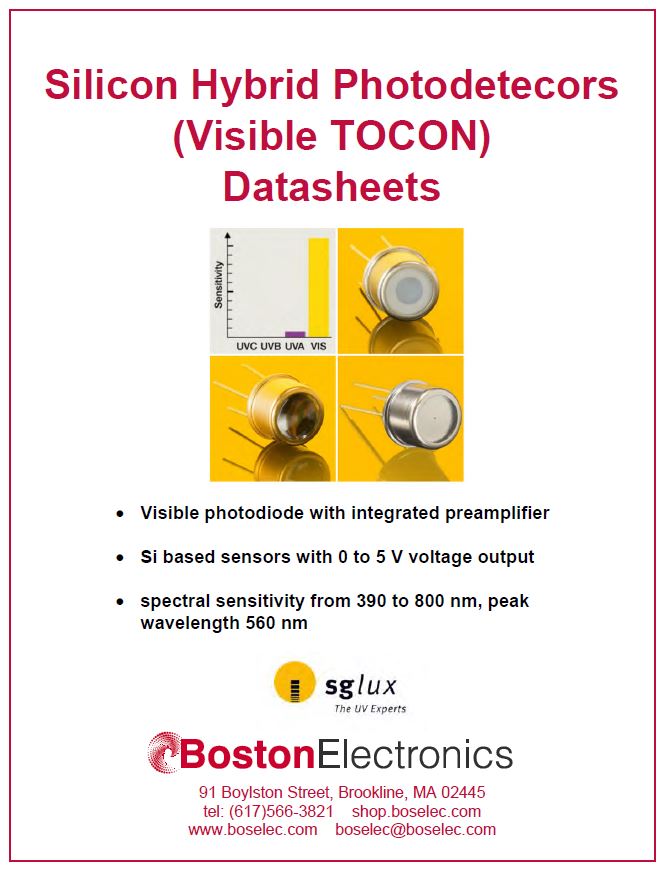

Our Silicon Hybrid Photodetectors (Silicon TOCONs) catalog is a good place to start to understand the wide range of products available to meet your visible sensing requirements.   Discussion on performance and product configuration for the product line can be found here.

Listed below are the Silicon TOCONs available for sale through the web store. See the selection guide for the full product line.

Silicon Hybrid TOCONs - Web Store

PartWavelength
range
IrradianceOutputWeb Store
TOCON Si1290 - 1010 nm
626 nm peak
1.8 pW/cm2 to 1.8 nW/cm20-5 VBuy
TOCON Si7290 - 1010 nm
626 nm peak
1.8 uW/cm2 to 1.8 mW/cm20-5 VBuy
TOCON Si10290 - 1010 nm
626 nm peak
1.8 mW/cm2 to 18 W/cm20-5 VBuy
TOCON Starter Kit
easy test set up0-5 VBuy
