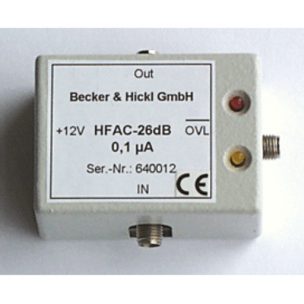

Wide-Band Amplifiers for PMTs and MCPs
- Cutoff frequency 1.6 GHz
- Gain 26 dB
- Input and Output Impedance 50 Ohm
- Low Frequency Limit < 5kHz
- Input Protection
- Monitoring of Detector Current
- Overload Warning

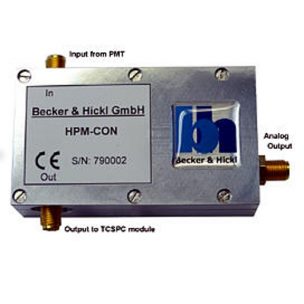

Frequency-to-Analog Converter for PMT Pulses
- Input pulse amplitude -30 mV to -200 mV
- Input pulse width down to 500 ps
- Inserts directly in detector output pulse line
- Compatible with bh PMT modules and hybrid detectors
- Input pulse rate up to 107 pulses per second
- Output voltage range 0 to +4.9 V
- Power supply ± 5V from bh SPC or DCC module

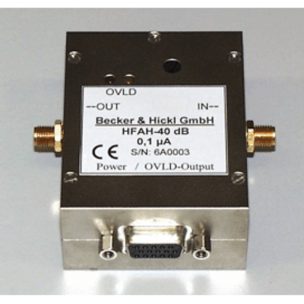

Wide-Band Amplifiers for PMTs and MCPs
- Overload indicator
- Overload signal for detector shutdown
- Gain versions 20 dB and 40 dB
- Cutoff frequency 430 MHz and 2.9 GHz
- Low noise, high linearity
- Input and output impedance 50 Ohm
- Input protection

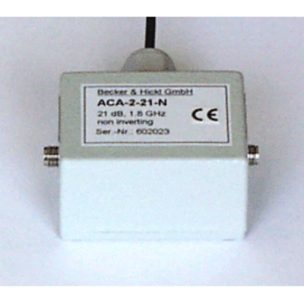

GHz Wide Band Amplifier
- Bandwidth 5 kHz to 2.2 GHz
- Gains from 13 dB to 37 dB available
- Input and Output Impedance 50 ohm.gif (306 Byte)
- Input Protection Available
- Power Supply +12 V
